Description

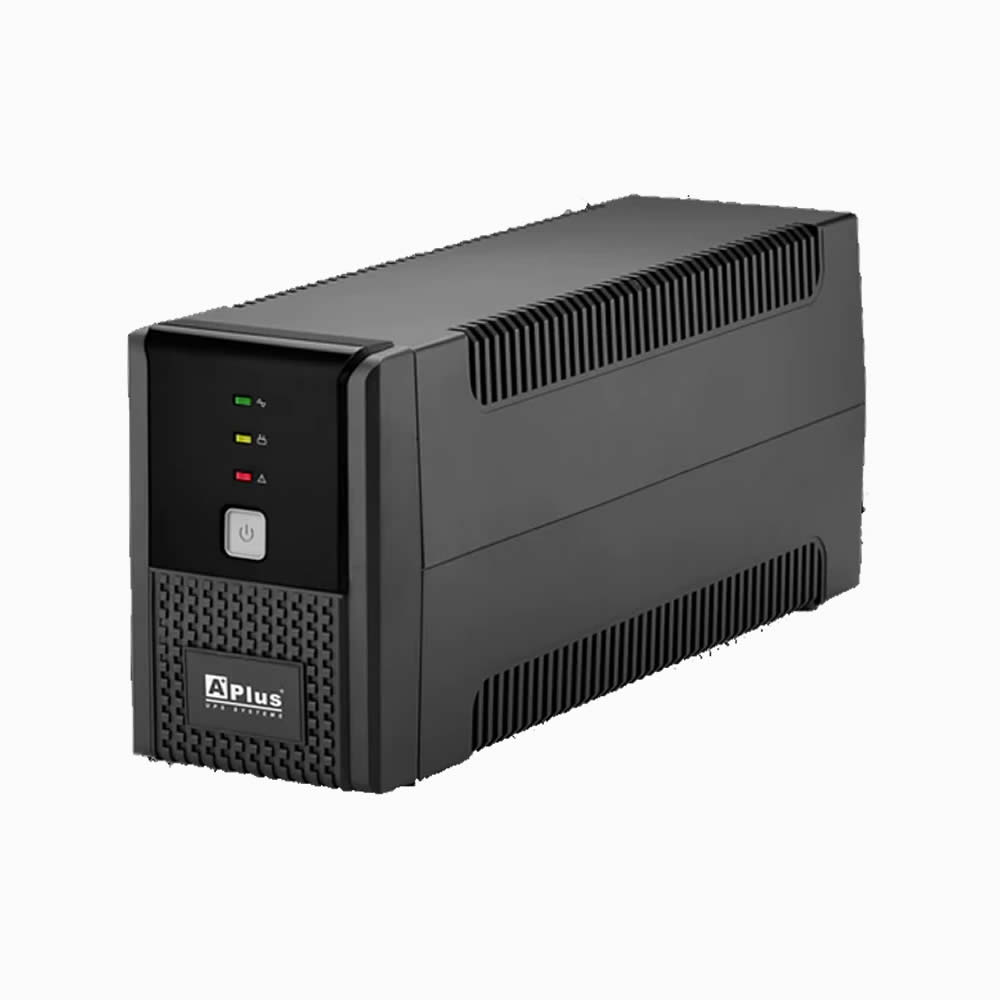

Optimize power reliability with the Aplus UPS 2000VA Line Interactive. Its versatile input voltage range (110-120VAC or 200-240VAC) ensures adaptability. The output maintains stability with voltage regulation of 10%, offering a simulated sinewave for consistent power. The 24V DC battery, with safety features, provides up to 5 hours recharge time. Audible alarms and compact design enhance monitoring and space efficiency. Ensure seamless power in diverse environments with this reliable UPS solution.
INPUT

VOLTAGE 110/115/120 VAC OR 200V/230/240 AC

VOLTAGE RANGE -30%+25%

FREQUENCY 50HZ OR 60Hz (AUTO SENSING)



OUTPUT

VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%

FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz

WAVEFORM SIMULATED SINEWAVE

TRANSFER TIME <6ms (TYPICAL)



BATTERY

VOLTAGE 24V DC

TYPE 12V/9AH*1PC

RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE

SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION



ALARM

BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS

LOW BATTERY FOUR SHORT TONES EVERY SECOND

OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY

FAULT BEEPING CONTINUOUSLY



ENVIRONMENT

OPERATING TEMPERATURE 0 C TO 40 C

HUMITDITY 0-95% (NON CONDENSING)

ACOUSTIC NOISE <40dB AT 1M



PHYSICAL

DIMENSIONS 343 x 135 x 208mm

Specifications

• Aplus: Aplus
