Description

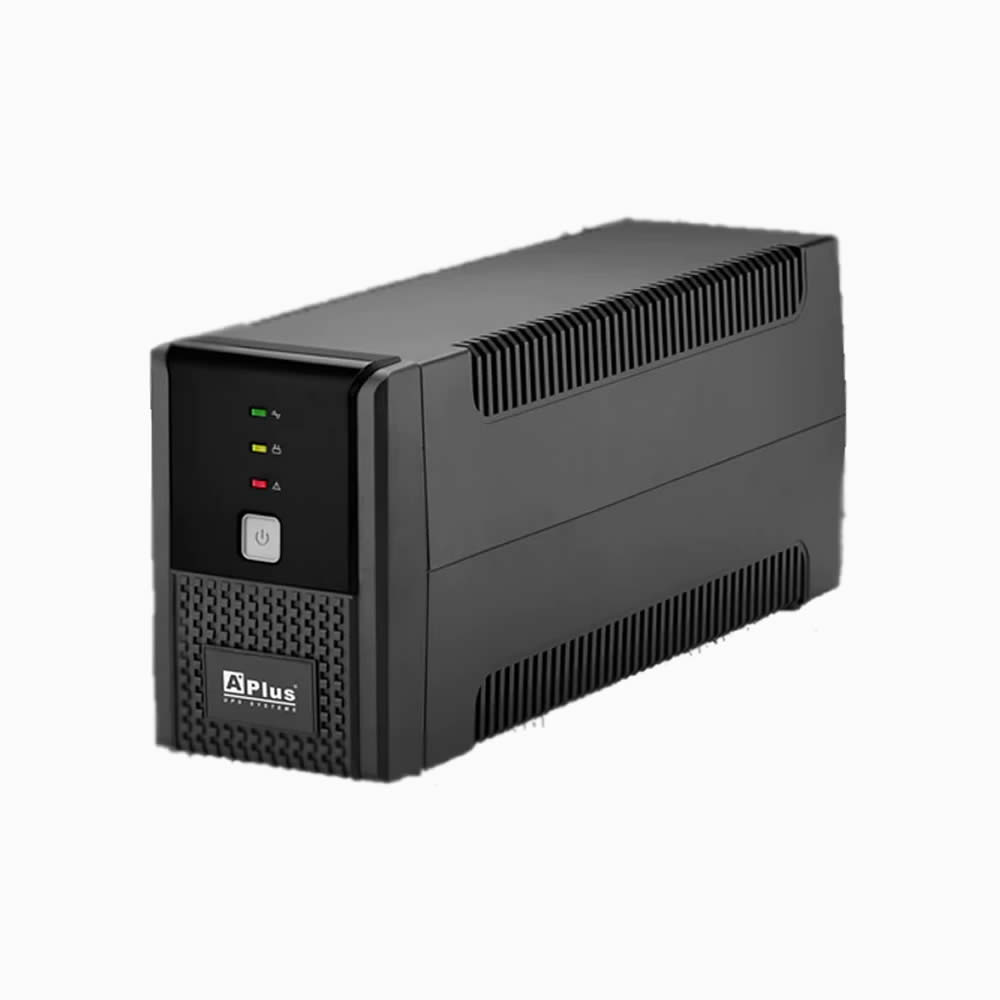

Enhance your power backup with the Aplus UPS 1500 VA Line Interactive. With versatile input options (110-120VAC or 200-240VAC) and a wide voltage range, it ensures stable output (110-120VAC or 200-240VAC 10%). Offering a simulated sinewave and rapid transfer time, it's a reliable safeguard. Compact (343 x 135 x 208mm), it operates silently and efficiently from 0 C to 40 C. Invest in power security today.
INPUT

VOLTAGE 110/115/120 VAC OR 200V/230/240 AC

VOLTAGE RANGE -30%+25%

FREQUENCY 50HZ OR 60Hz (AUTO SENSING)



OUTPUT

VOLTAGE REGULATION AC MODE/BATTERY NORMAL: 110/115/120 VAC OR 200V/230/240VAC +-10%

FREQUENCY AC MODE: 47-53Hz FOR 50Hz OR 57-63hZ FOR 60Hz; BATTERY MODE: 50Hz OR 60Hz +-1Hz

WAVEFORM SIMULATED SINEWAVE

TRANSFER TIME <6ms (TYPICAL)



BATTERY

VOLTAGE 24V DC

TYPE 12V/9AH*1PC

RECHARGE TIME 5 HOURS TO 90% AFTER COMPLETE DISCHARGE

SAFETY PROTECTION OVER CHARGE & OVER DISCHARGE PROTECTION



ALARM

BATTERY MODE TWO SHORT TONES EVERY 8 SECONDS

LOW BATTERY FOUR SHORT TONES EVERY SECOND

OVERLOAD RED LED: FLASHING, BUZZER: BEEPING CONTINUOUSLY

FAULT BEEPING CONTINUOUSLY



ENVIRONMENT

OPERATING TEMPERATURE 0 C TO 40 C

HUMITDITY 0-95% (NON CONDENSING)

ACOUSTIC NOISE <40dB AT 1M



PHYSICAL

DIMENSIONS 343 x 135 x 208mm

Specifications

• Aplus: Aplus
