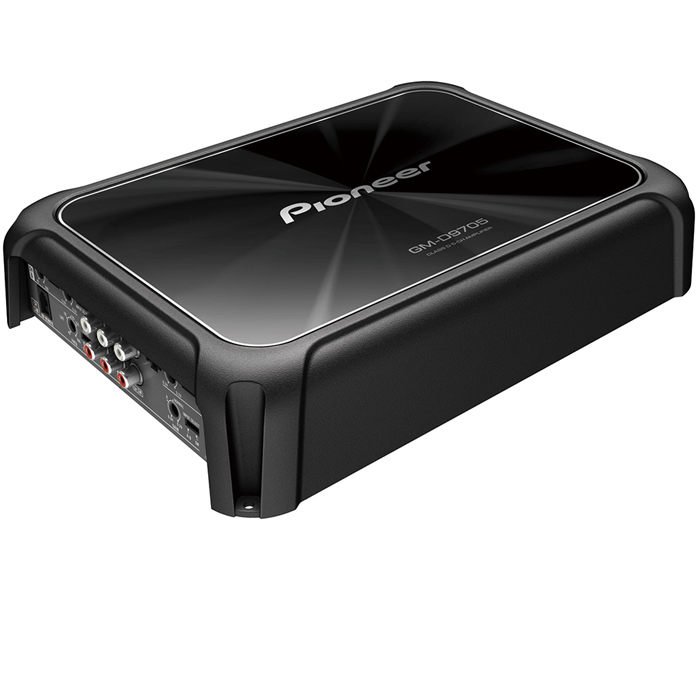

PIONEER Class-D 5-Channel Amplifier with Wired Bass Boost Remote GMD9705

Amplifier Class Class-FD
2000W
No. of Channels 5/3
Max.power output 150 W x 4 (A-/B-Ch.) / 700 W x 1 (Subwoofer Ch. ) (4Ω) 200 W x 4 (A-/B-Ch.) / 1,200 W x 1 (Subwoofer Ch. ) (2Ω) 400 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
RMS power output 75 W x 4 (A-/B-Ch.) / 350 W x 1 (Subwoofer Ch. ) (4Ω) 100 W x 4 (A-/B-Ch.) / 600 W x 1 (Subwoofer Ch. ) (2Ω) 200 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
Frequency Response 10 Hz to 50 kHz (A-/B-Ch.) 10 Hz to 500 Hz (Subwoofer Ch.)
Impedance 2Ω to 8Ω
Total Harmonic Distortion (THD) <0.05% (A-/B-Ch.: 1 kHz) (Subwoofer Ch. : 100 Hz) S/N Ratio> 94 dB
Speaker Level Input Yes
Automatic Signal Sensing and Turn-On Yes
Crossover Type Variable HPF/LPF
Crossover Frequency 40 Hz to 500 Hz
Bass Boost Frequency 50 Hz (Subwoofer-Ch)
Baas Boost Level 0 dB to 18 dB (Subwoofer-Ch)
Bass Boost Remote Yes (Subwoofer-Ch)
Dimensions 302 mm x 60 mm x 215 mm

Out of stock

Spend  1,500.00 to get free shipping
SKU: GMD9705 Category: Tag:

Description

Amplifier Class Class-FD
2000W
No. of Channels 5/3
Max.power output 150 W x 4 (A-/B-Ch.) / 700 W x 1 (Subwoofer Ch. ) (4Ω) 200 W x 4 (A-/B-Ch.) / 1,200 W x 1 (Subwoofer Ch. ) (2Ω) 400 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
RMS power output 75 W x 4 (A-/B-Ch.) / 350 W x 1 (Subwoofer Ch. ) (4Ω) 100 W x 4 (A-/B-Ch.) / 600 W x 1 (Subwoofer Ch. ) (2Ω) 200 W x 2 (A-/B-ch Bridgedable ) (4Ω Bridged)
Frequency Response 10 Hz to 50 kHz (A-/B-Ch.) 10 Hz to 500 Hz (Subwoofer Ch.)
Impedance 2Ω to 8Ω
Total Harmonic Distortion (THD) <0.05% (A-/B-Ch.: 1 kHz) (Subwoofer Ch. : 100 Hz) S/N Ratio> 94 dB
Speaker Level Input Yes
Automatic Signal Sensing and Turn-On Yes
Crossover Type Variable HPF/LPF
Crossover Frequency 40 Hz to 500 Hz
Bass Boost Frequency 50 Hz (Subwoofer-Ch)
Baas Boost Level 0 dB to 18 dB (Subwoofer-Ch)
Bass Boost Remote Yes (Subwoofer-Ch)
Dimensions 302 mm x 60 mm x 215 mm
